Full Mortise Continuous Geared Aluminum Hinges: Specifications, Installation, and Applications

Full mortise continuous geared aluminum hinges are an indispensable component in modern architecture, particularly in high-traffic environments where durability, security, and aesthetic appeal are paramount. At Zhejiang Cross Hardware, we have perfected the design and manufacturing of these hinges to meet the highest standards of quality and performance.  These hinges are engineered to provide seamless, long-lasting performance for doors in various settings such as commercial buildings, hospitals, educational institutions, and more. They offer a robust solution that combines strength with a sleek, unobtrusive appearance, ensuring both functionality and visual appeal.

This comprehensive guide will delve into the specifications, benefits, installation process, and applications of full mortise continuous geared aluminum hinges from Zhejiang Cross Hardware. We aim to provide a detailed overview for professionals and enthusiasts alike, highlighting the superior craftsmanship and innovative features that set our products apart in the industry. Whether you are involved in new construction, renovation, or facility management, understanding the advantages and proper installation of these hinges will enhance the efficiency, security, and aesthetics of your building projects.

Specifications and Features

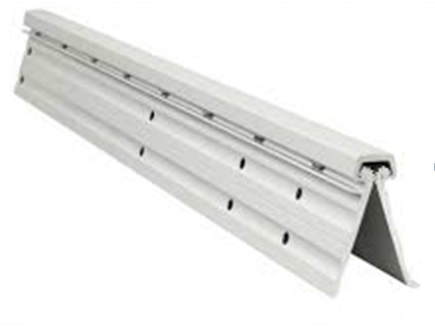

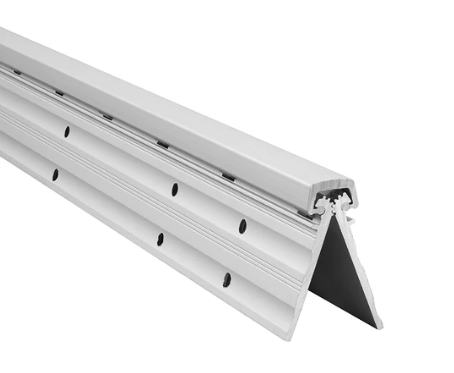

Full mortise continuous geared aluminum hinges are crafted from high-quality architectural-grade aluminum, known for its excellent strength, lightweight properties, and resistance to corrosion. Here are the detailed specifications and features that make these hinges a top choice in the industry:

1. Material and Durability:

· Made from architectural-grade aluminum, these hinges are resistant to rust and corrosion, ensuring longevity even in harsh environments.

· Tested to withstand over 25 million cycles, these hinges exceed the performance demands of high-traffic areas.

2. Design and Appearance:

· The full mortise design conceals the hinge leaves within the rabbet of the door frame and door edge, providing a sleek, uninterrupted look.

· Available in various finishes, these hinges can be matched to the door and frame to enhance aesthetic appeal.

3. Load Capacity:

· Capable of supporting heavy doors, often up to 600 pounds, making them suitable for large, solid-core doors.

· The continuous design distributes the weight evenly along the door’s length, reducing stress on any single point and prolonging the lifespan of the door and frame.

4. Smooth Operation:

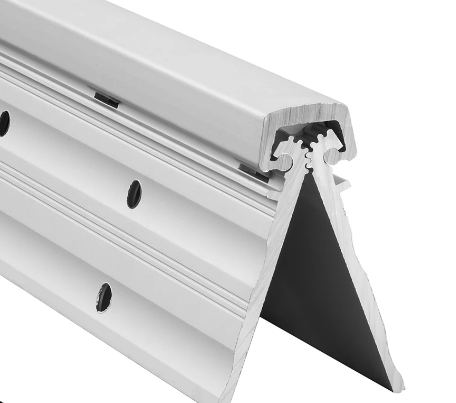

· The geared mechanism ensures smooth and silent operation, minimizing wear and tear.

· Factory-applied lubricant enhances the performance and longevity of the hinges.

5. Compliance and Certification:

· Many models are BHMA Grade 1 certified, ensuring they meet rigorous standards for performance, durability, and safety.

6. Security:

· The continuous design makes it difficult for intruders to tamper with or remove the hinge pins, providing enhanced security.

Installation Process

Proper installation is critical to the performance and longevity of full mortise continuous geared aluminum hinges. The following steps provide a comprehensive guide to ensure correct installation:

1. Preparing the Frame:

· Positioning the Hinge: With the hinge in the open position, use a shim to position the top end of the hinge 1/8" (3.2mm) below the header for door clearance.

· Marking and Drilling Holes: Accurately mark or center punch the hole locations. Drill the holes using a #13 (.185) or 3/16" (.188) drill bit for metal doors, or a 5/32" (.156) drill bit for wood doors.

· Cutting Adjustments: If the hinge needs to be shortened, cut only one end using a hacksaw. Ensure the hinge is in a closed position with the cap up or on its side. Reinstall the cap on the hinge after cutting to ensure smooth operation.

2. Attaching the Hinge to the Door:

· Aligning the Hinge: Place the door leaf on the door, ensuring it is aligned along the full length of the door edge.

· Marking and Drilling: Mark or center punch, and then drill the holes.

· Fastening the Hinge: Attach the hinge to the door using the provided fasteners. For metal doors, use #12-24 flathead screws for both leaves. For wood doors, use #12-24 flathead screws in the frame and #12 x 1-1/2" flathead wood screws in the door.

3. Attaching the Door to the Frame:

· Positioning the Door: With the door at 90 degrees to the frame, align it with the top end screw hole.

· Securing the Door: Install one screw at the top to hold the door in place, then remove the wedge and install the remaining screws.

· Checking Alignment: Ensure the door swings properly and that there is adequate clearance to prevent binding.

Clearance Requirements

Ensuring the correct clearance is crucial for the smooth operation of full mortise continuous geared aluminum hinges. The clearance requirements vary depending on the type of door and its edge profile:

1. Single Doors (Square Edged):

· Hinge clearance: 5/16" (7.9mm)

· Lockside clearance: 1/8" (3.2mm)

· Clearance for irregularities: 1/32" (0.8mm)

· Total Clearance Required: 15/32" (11.9mm)

2. Single Doors (Beveled Edged):

· Hinge clearance: 5/16" (7.9mm)

· Lockside clearance: 1/8" (3.2mm)

· Beveled edged clearance: 1/32" (0.8mm)

· Clearance for irregularities: 1/32" (0.8mm)

· Total Clearance Required**: 1/2" (12.7mm)

3. Double Doors (Square Edged):

· First hinge clearance: 5/16" (7.9mm)

· First clearance for irregularities: 1/32" (0.8mm)

· Edge to edge clearance: 3/16" (4.8mm)

· Second hinge clearance: 5/16" (7.9mm)

· Second clearance for irregularities: 1/32" (0.8mm)

· Total Clearance Required: 7/8" (22.2mm)

4. Double Doors (Beveled Edged):

· First hinge clearance: 5/16" (7.9mm)

· First clearance for irregularities: 1/32" (0.8mm)

· First beveled edge clearance: 1/32" (0.8mm)

· Edge to edge clearance: 3/16" (4.8mm)

· Second hinge clearance: 5/16" (7.9mm)

· Second beveled edge clearance: 1/32" (0.8mm)

· Second clearance for irregularities: 1/32" (0.8mm)

· Total Clearance Required: 15/16" (23.8mm)

Reinforcements and Additional Considerations

For doors that are extremely heavy or extra-wide, reinforcing the hinge with Riv-Nuts is recommended. This reinforcement is particularly crucial for doors exceeding 450 pounds (204 kg). Riv-Nuts provide additional support and ensure the hinge remains securely fastened under heavy loads.

1. Pairs of Doors with Mullions:

· If the mullion is between the doors, treat it as a single door installation.

· If the mullion is behind the doors, treat it as a double door installation.

2. Grouted/Flushed-In Frames:

· Ensure a mudguard is installed behind the frame for ease of installation.

· Avoid using self-drilling, thread-forming screws with grouted steel frames that lack a mudguard.

Advantages of Full Mortise Continuous Geared Aluminum Hinges

1. Enhanced Security:

· The continuous design makes it difficult for intruders to tamper with or remove the hinge pins, enhancing security.

· Some models include additional security features such as tamper-resistant fasteners and covers.

2. Reduced Maintenance:

· The even weight distribution along the door's length reduces wear and tear on the door and frame, minimizing maintenance needs.

· The factory-applied lubricant ensures smooth operation and reduces the need for frequent lubrication.

3. Aesthetic Appeal:

· The concealed design provides a clean, modern look, ideal for contemporary architectural designs.

· Various finishes allow the hinges to blend seamlessly with the door and frame, enhancing the overall aesthetic.

4. Longevity:

· Made from durable materials and designed to withstand heavy use, these hinges offer long-term reliability and performance.

· The high cycle rating ensures they can handle frequent use without degradation.

5. Versatility:

· Suitable for both new constructions and retrofit applications, these hinges are adaptable to various door types and installation environments.

· Available in different sizes and load capacities to meet specific project requirements.

Application Scenarios

Full mortise continuous geared aluminum hinges are versatile and can be used in a variety of settings:

Commercial Buildings

Full mortise continuous geared aluminum hinges are ideal for office buildings, shopping centers, and other commercial spaces where durability and aesthetics are paramount. Their high load capacity makes them suitable for heavy, frequently used doors, ensuring long-term performance and reliability in busy environments.

Healthcare Facilities

The smooth operation and security features of these hinges make them suitable for hospitals, clinics, and other healthcare facilities. Hygienic finishes are available to meet the stringent cleanliness standards of healthcare environments, contributing to better infection control and overall safety.

Educational Institutions

High-traffic areas in schools and universities benefit from the robust construction and low maintenance requirements of these hinges. They provide reliable performance for doors subjected to constant use by students and staff, ensuring security and ease of access throughout educational facilities.

Government Buildings

Security and durability are essential for government facilities, making these hinges a suitable choice. They offer a professional appearance while ensuring the doors operate smoothly and securely, meeting the high standards required in such environments.

Industrial Applications

In warehouses and factories, the heavy-duty design of these hinges can support large and heavy doors, ensuring smooth operation even in demanding environments. The hinges are resistant to dust, moisture, and other industrial conditions, maintaining performance in harsh environments.

Residential Buildings

For high-end residential projects, these hinges offer a balance of aesthetics and functionality, ensuring doors are both secure and easy to operate. They can be used for main entry doors or other critical points where durability and security are important, enhancing the overall appeal and safety of residential properties.

Benefits in Detail

1. Enhanced Security:

The continuous geared hinge design eliminates gaps that traditional hinges might have, providing no room for tampering or forced entry. This design ensures that the hinge cannot be easily removed or damaged, offering superior security for the property.

2. Smooth and Silent Operation:

The geared mechanism and factory-applied lubricant ensure that the door operates smoothly and quietly.This is particularly beneficial in environments where noise reduction is crucial, such as hospitals and offices.



3. Long-term Cost Efficiency:

Although the initial investment might be higher than traditional hinges, the durability and reduced maintenance needs make these hinges cost-effective in the long run. They reduce the frequency and cost of repairs and replacements, providing better value over time

4. Environmental Resistance:

Made from high-quality aluminum, these hinges are exceptionally resistant to rust and corrosion, making them ideal for exterior doors exposed to the elements. Their robust construction ensures they can withstand varying weather conditions without compromising functionality, providing long-lasting performance in any environment.

5. Fire Rating and Safety:

Many full mortise continuous geared aluminum hinges are available with fire ratings, such as 90-minute and 3-hour fire-rated options. This makes them suitable for use in fire-rated door assemblies, enhancing building safety and ensuring compliance with fire codes. Their fire-resistant properties contribute significantly to the overall safety measures in buildings, providing peace of mind in emergency situations.

6. ADA Compliance:

These hinges help ensure that doors comply with the Americans with Disabilities Act (ADA) by providing smooth, effortless operation. They enable doors to be operated with minimal force, making buildings more accessible to individuals with disabilities. This compliance enhances inclusivity and convenience for all building occupants, meeting important accessibility standards.

Detailed Installation Tips and Best Practices

1. Pre-Installation Checks:

· Verify that the door and frame are plumb, level, and square. Any misalignment can affect the performance of the hinge.

· Ensure that all materials and tools required for installation are on hand to prevent delays and ensure a smooth installation process.

2. Cutting Adjustments:

· When shortening the hinge, it is crucial to cut only one end and to use a hacksaw or similar tool to ensure a clean cut.

· The cut end should be reinstalled with the cap to maintain the integrity of the hinge and ensure that it operates correctly.

3. Using Shims for Alignment:

· Shims can be used during installation to ensure that the hinge is positioned correctly and to provide the necessary clearance between the door and frame.

· This helps to prevent binding and ensures smooth operation.

4. Secure Fastening:

· Ensure all fasteners are properly tightened, but avoid over-tightening, which can strip the screws or damage the hinge.

· Use the correct drill bits for metal or wood doors as specified to ensure that the holes are properly sized and aligned.

5. Regular Maintenance:

· Periodic inspection and maintenance are recommended to ensure the longevity and performance of the hinges.

· Check for any signs of wear or damage, and reapply lubricant if necessary to maintain smooth operation.

Comparison of Full Mortise Hinges with Other Types of Hinges

Full Surface vs. Full Mortise Hinges

· Full Surface Hinges: These are mounted on the surface of the door and frame, making installation easier and providing a higher degree of stability. They are visible when the door is closed, which might be a consideration for aesthetics.

· Full Mortise Hinges: These are installed within the mortise cutout in the door and frame, offering a more concealed look but requiring precise installation. They provide a cleaner, more streamlined appearance as they are not visible when the door is closed.

Full Surface vs. Swing Clear Hinges

· Full Surface Hinges: Provide a simple installation process and ensure the door operates smoothly without requiring additional space. They are generally easier to install and maintain.

· Swing Clear Hinges: Designed to swing the door completely clear of the opening when open, making them ideal for applications requiring maximum clearance, such as ADA compliance or moving large objects through doorways.



Full Mortise vs. Half Mortise Hinges

· Full Mortise Hinges: Installed into cutouts in both the door and frame, providing a flush fit that is aesthetically pleasing and secure. They require precise mortising during installation.

· Half Mortise Hinges: These are installed with one leaf mounted on the surface of the frame and the other leaf in a mortise cutout on the door. This offers a compromise between the concealed look of full mortise and the easier installation of surface-mounted hinges.

Full Mortise vs. Half Surface Hinges

· Full Mortise Hinges: Require mortising in both the door and the frame, providing a concealed and secure fit. Ideal for high-traffic and heavy-duty applications where aesthetics are also important.

· Half Surface Hinges: One leaf is mounted on the surface of the door, and the other leaf is mortised into the frame. This allows for easier installation on the door while still providing some of the benefits of a concealed hinge.

Full Mortise vs. Butt Hinges

· Full Mortise Hinges: Offer a more concealed look with the hinge leaves set into the door and frame, requiring precise mortising. Suitable for high-traffic doors where aesthetics are important.

· Butt Hinges: Typically smaller and easier to install, with both leaves mounted on the surface. They are more visible but are often used for interior doors where heavy-duty performance is not as critical.

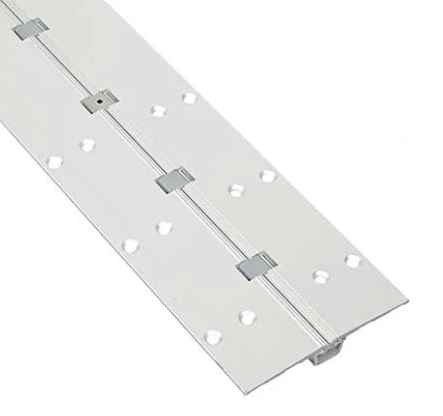

Full Mortise vs. Continuous Hinges

· Full Mortise Hinges: Installed in cutouts in the door and frame, offering a concealed and secure fit. Best suited for heavy-duty applications and doors where aesthetics are a priority.

· Continuous Hinges: Run the entire length of the door, distributing weight more evenly and providing increased support and durability. Ideal for high-traffic areas and doors subject to constant use, though they are more visible than full mortise hinges.

Technological Advancements

1. Enhanced Materials:

· Advances in materials science have led to the development of more robust and corrosion-resistant alloys for these hinges.

· This enhances their durability and performance in various environmental conditions.

2. Custom Finishes and Designs:

· Manufacturers now offer a wide range of custom finishes and designs to match any architectural style.

· This allows for greater flexibility in design while maintaining the functionality and benefits of the hinges.

3. Integrated Security Features:

· Some models come with integrated security features such as tamper-proof fasteners and reinforced construction.

· These enhancements provide an additional layer of security, particularly important for sensitive or high-security areas.

Applications Of Full Mortise Continuous Geared Aluminum Hinges

1. Commercial Office Buildings:

· In a high-rise office building, the use of full mortise continuous geared aluminum hinges ensured smooth operation of heavy glass doors, enhancing both security and aesthetics.

· The hinges provided reliable performance despite the high volume of daily traffic.

2. Healthcare Facilities:

· A large hospital implemented these hinges in all patient room doors to reduce noise and improve accessibility.

· The hinges' smooth operation and durability contributed to a quieter, more patient-friendly environment.

3. Educational Institutions:

· A university installed these hinges in dormitory buildings, lecture halls, and administrative offices.

· The robust construction and low maintenance needs were ideal for the high-traffic areas, reducing long-term maintenance costs.

4. Government Buildings:

· A government facility used these hinges to enhance security and functionality in secure areas.

· The continuous hinge design prevented tampering and ensured reliable operation under constant use.

5. Industrial Warehouses:

· In an industrial setting, these hinges supported large, heavy doors used for loading bays and storage areas.

· The hinges' resistance to dust, moisture, and heavy use made them perfect for the harsh conditions of the warehouse.

Full mortise continuous geared aluminum hinges are a vital component for any setting that demands durability, security, and a clean aesthetic. By following detailed installation instructions and adhering to clearance requirements, users can ensure optimal performance and longevity. These hinges are suitable for a wide range of applications, from commercial and industrial settings to healthcare and educational institutions. Their robust construction, enhanced security features, and smooth operation make them a superior choice over traditional hinges. Understanding and implementing best practices in the installation and maintenance of full mortise continuous geared aluminum hinges will allow you to leverage their full potential, contributing to the overall efficiency, security, and aesthetic appeal of your building projects. These hinges represent the pinnacle of innovation and quality in modern door hardware solutions, ensuring that doors not only look good but also perform reliably for years to come.

At Zhejiang Cross Hardware, we pride ourselves on providing top-tier full mortise continuous geared aluminum hinges that set the standard in the industry. Whether you are an architect, builder, or facility manager, choosing full mortise continuous geared aluminum hinges from Zhejiang Cross Hardware is a decision that will pay dividends in the form of reduced maintenance costs, enhanced security, and improved user satisfaction. Their versatility, durability, and advanced features make them an indispensable part of any modern building design.
