What Is A Friction Hinge?

Introduction

Friction hinges, also known as torque hinges, are specialized hinges that provide resistance to pivoting motion. They are commonly used to control motion or hold a pivoting object open or closed. The most recognizable application of these hinges is in laptops, where they allow smooth movement and positioning of the screen. However, friction hinges find application in a wide range of industries due to their unique properties and design flexibility.

How Does a Friction Hinge Work?

Friction hinges achieve their functionality by engineering specific tolerances between mechanical components. To achieve the desired degree of resistance or damping to the hinge movement, additional materials such as springs and lubricants are often employed. The primary purpose of a friction hinge can vary depending on the application.

In some cases, the goal is for the object on the hinge to close completely at a desired degree of speed. In others, the torque is used to hold one or both objects to which the hinges are secured in a specific position, not necessarily at a fully opened or closed position. These hinges are designed to be moved by a force of torque greater than their rated torque, allowing them to hold one of the pivoting members in place securely.

Custom-designed friction hinges are prevalent in critical applications, where precise torque requirements are necessary. These designs can include one-way hinges, which offer resistance only in one direction, two-way hinges with equal damping in both directions, or a combination of both. Various factors such as lubricant viscosity, construction material, and the degree of space tolerance between components are considered while designing friction hinges for specific applications, including medical, rugged, high or low-temperature environments, and hazardous environments.

Applications of Friction Hinges

Friction hinges find application in a diverse array of industries and products. Some of the prominent uses include:

1. Laptops and Electronics Devices

Friction hinges have become a staple in the design of laptops and various electronic devices. These specialized hinges provide users with the flexibility to adjust the angle of their screens precisely, allowing for optimal viewing experiences. Whether it's tilting the screen back for comfortable typing or adjusting it for the best video-watching position, friction hinges ensure that the screen stays securely in place. This convenience and versatility have contributed significantly to the popularity of laptops and electronic devices in the market.

2. Medical Devices

The medical industry heavily relies on precision and control, and friction hinges serve a critical role in this regard. Medical devices often require delicate and accurate positioning of instruments and equipment during procedures. Friction hinges enable smooth and controlled motion, ensuring that medical professionals can adjust equipment precisely to their desired angles. Whether it's a surgical tool or a medical imaging device, these hinges enhance the overall efficiency and accuracy of medical procedures.

3. Automotive and Aerospace

Friction hinges have found essential applications in both the automotive and aerospace sectors. In automotive design, they contribute to the functionality of foldable seats, storage compartments, and infotainment systems. The hinges allow for smooth movement and secure positioning, enhancing passenger comfort and convenience. Similarly, in the aerospace industry, friction hinges are utilized in various components, ranging from fold-out tray tables to overhead bins. These hinges ensure that these elements can be easily deployed and stowed, optimizing space and functionality within the aircraft cabin.

4. Transportation

Transportation settings, including planes, trains, boats, and automobiles, heavily rely on friction hinges for a multitude of purposes. These hinges are integral to the smooth operation of doors, windows, and panels in these vehicles. By providing controlled resistance, friction hinges ensure that doors and windows can be opened and closed with ease while maintaining stability during travel. Additionally, they contribute to safety by preventing doors and panels from inadvertently closing or opening during motion.

5. Industrial and Consumer Applications

Friction hinges have a wide range of applications in industrial and consumer products, enhancing user experience and ensuring durability. In kitchen appliances, such as ovens and refrigerators, these hinges enable easy opening and closing of doors while securely holding them in place. Retail displays often incorporate friction hinges to allow for adjustable angles, making it easier to showcase products effectively. In furniture, friction hinges are used for foldable and adjustable features, like drop-down tables or reclining chairs, providing users with convenience and customization options.

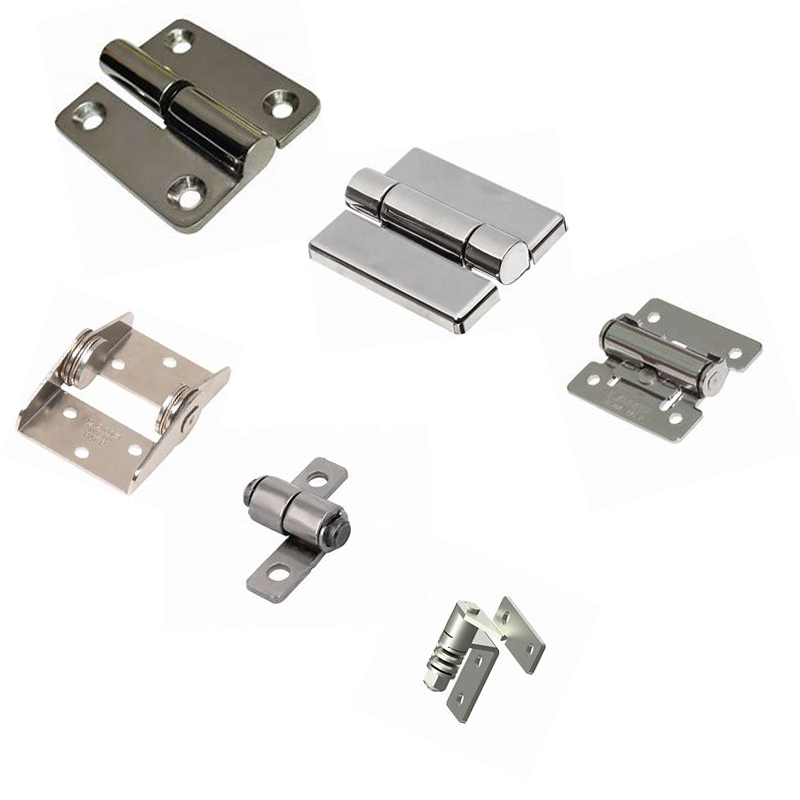

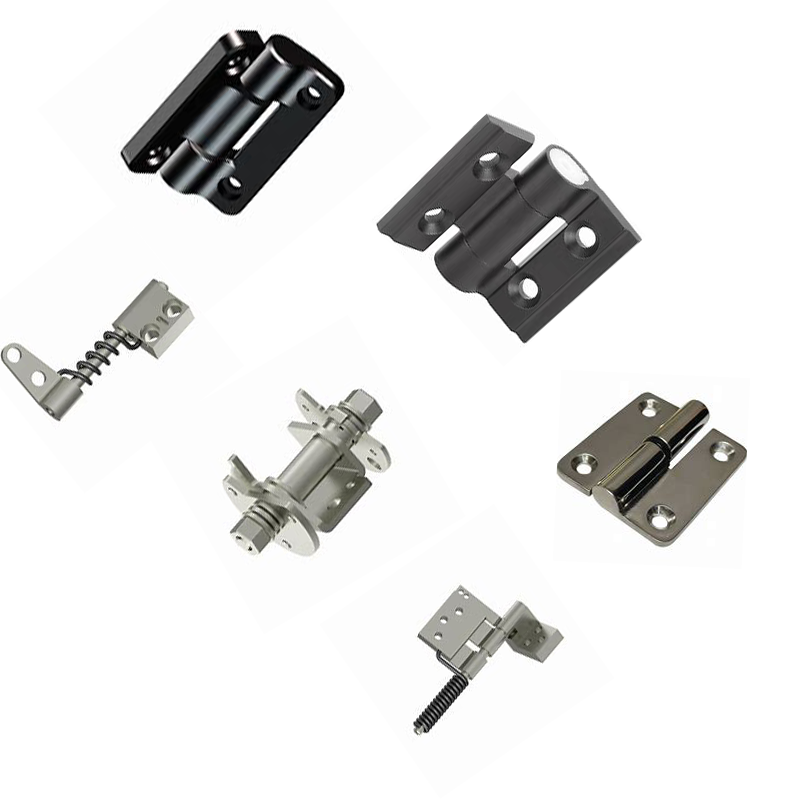

Stock & Custom Friction Hinges

Crosshardware, a pioneering company in hinge design, manufactures a wide range of friction hinges in various sizes and strengths. Their designs include 360-degree hinges, which allow rotation of hinge components all the way around. The motion of these hinges is generally limited by the mating components to which the hinge is mounted.

The hinges from Crossharware are known for their long and stable cycle life, making them reliable for various applications. They offer a selection of size and style options that are easily mountable and installable. Additionally, Crossharware provides both balanced and unbalanced (asymmetrical) hinges, catering to different torque requirements.

Conclusion

Friction hinges, or torque hinges, are essential components used to achieve controlled motion and resistance in various products and industries. From laptops and medical devices to automotive and aerospace applications, these hinges play a crucial role in enhancing functionality and user experience. Customizable designs and a wide range of options make friction hinges versatile and adaptable to specific needs.

FAQs (Frequently Asked Questions)

1. What are friction hinges used for?

Friction hinges are used to control motion or hold a pivoting object open or closed. They are commonly found in laptops, medical devices, automotive components, and many other industrial and consumer applications.

1. How do friction hinges work?

Friction hinges achieve their functionality by engineering specific tolerances between mechanical components. Additional materials like springs and lubricants are often used to achieve the desired resistance or damping to the hinge movement.

1. Can friction hinges be customized for specific applications?

Yes, friction hinges can be custom-designed to meet the exact torque requirements of critical applications. Custom designs can provide one-way hinges, two-way hinges, or a combination of both, based on the specific needs.

1. Are friction hinges durable?

Yes, friction hinges manufactured by reputable companies like TorqMaster are designed to offer long and stable cycle life, ensuring their durability in various applications.

HINGE Catalog of Cross Hardware 科森.pdf

1. Where can I find more information about friction hinge applications?

For more detailed information about friction hinge applications, you can visit Cross Hardwares' website.
