When selecting hinges for a commercial door, the hinge type can have a significant impact on door operation, durability, maintenance, and long-term performance.

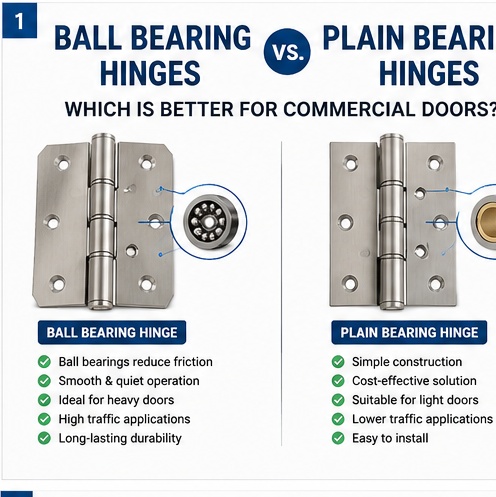

Two of the most common choices are ball bearing hinges and plain bearing hinges.
At first glance, they may look almost identical. Both are commonly used as butt hinges and can be available in similar sizes, materials, and finishes. The major difference is inside the hinge knuckle: ball bearing hinges use ball bearings to reduce friction, while plain bearing hinges rely on direct contact between the hinge components.
So, which one should you choose?
The answer depends on several factors, including door weight, traffic frequency, door usage, hardware configuration, and project requirements.
This guide explains the key differences between ball bearing hinges and plain bearing hinges and helps you determine which type is right for your commercial door project.

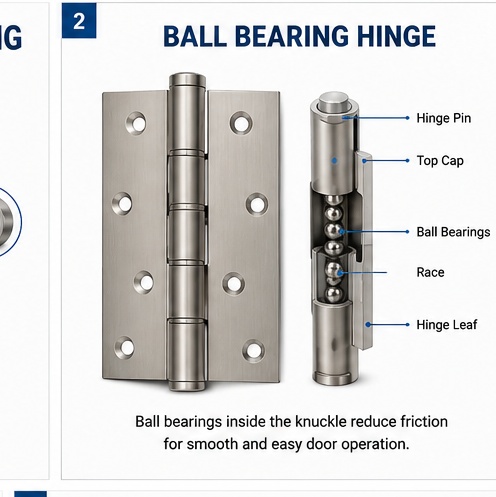

A ball bearing hinge is a door hinge that incorporates ball bearings into the hinge knuckle assembly.
The bearings help reduce friction as the door opens and closes. Because the bearing elements support the pivoting movement, ball bearing hinges are particularly suitable for doors that are heavy or used frequently.
Ball bearing hinges are commonly considered for:
Commercial entrance doors
High-traffic doors
Heavy or wide doors
Solid-core doors
Institutional buildings
Office buildings
Hotels
Hospitals
Doors with door closers
Other demanding architectural applications
For commercial projects where smooth operation and long-term durability are important, ball bearing hinges are often the preferred option.
Cross Hardware manufactures Ball Bearing Hinge UL products for applications requiring reliable and smooth door operation.

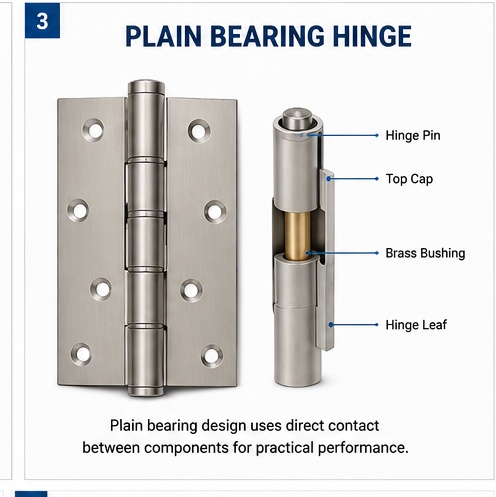

A plain bearing hinge, sometimes called a standard bearing hinge, does not use ball bearings between the hinge knuckles.
Instead, the hinge components rotate through direct surface contact around the hinge pin.
The design is relatively simple and can provide a practical and economical solution for doors that are lightweight or used less frequently.
Plain bearing hinges can be suitable for:
Interior doors
Lightweight doors
Low-traffic applications
Residential applications
Light commercial applications
Doors where a cost-effective hinge solution is required
Cross Hardware also offers Plain Bearing Hinge UL products in different configurations for architectural door applications.

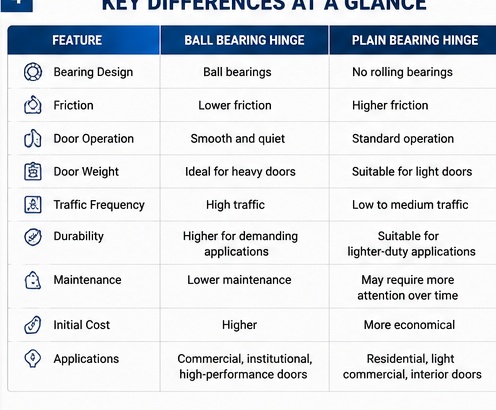

The easiest way to understand the difference is to compare the two hinge types across several important factors.
Feature | Ball Bearing Hinge | Plain Bearing Hinge |
|---|---|---|
Bearing design | Uses ball bearings | No rolling ball bearings |
Friction | Lower | Higher surface contact |
Door operation | Smooth and easy | Suitable for standard applications |
Heavy doors | Recommended | More limited |
High-traffic doors | Excellent choice | Better suited to lower traffic |
Durability | Generally higher for demanding applications | Suitable for lighter-duty applications |
Maintenance | Generally lower friction-related wear | May require more attention over time |
Initial cost | Usually higher | Usually more economical |
Commercial applications | Excellent | Suitable depending on application |
The important point is that neither hinge type is automatically the best choice for every door.
The correct hinge should be selected according to the actual requirements of the door opening.
Door weight is one of the most important factors when selecting a hinge.
A lightweight interior door does not place the same demands on a hinge as a heavy commercial entrance door.
For heavier doors, ball bearing hinges can help provide smoother operation by reducing friction around the hinge pivot.
For lighter doors with relatively low usage, a plain bearing hinge may provide an economical and practical solution.
When calculating door weight, remember to consider not only the door itself but also additional hardware that may be installed on the door, such as:
Door closers
Exit devices
Locks
Door operators
Other architectural hardware
For commercial projects, the complete door assembly should be considered when selecting the hinge.
How often the door is opened and closed is another important consideration.
A door in a private office may only be opened a limited number of times each day.
A door at a hotel entrance, hospital corridor, school, retail store, or commercial building may experience substantially more cycles.
For high-traffic applications, ball bearing hinges are generally a better choice because their bearing design helps reduce friction during repeated operation.
Plain bearing hinges can still be appropriate for doors with lower traffic levels where the demands on the hinge are more moderate.
Low traffic + lightweight door → Plain bearing hinge may be suitable
Medium to high traffic + heavier door → Ball bearing hinge is generally preferred
Door closers are commonly used on commercial and institutional doors.
When a door closer is installed, the hinge must work against the additional force generated during opening and closing.
This is one reason ball bearing hinges are commonly specified for commercial doors equipped with door closers.
A ball bearing design can help reduce friction and make the door easier to operate.
For this type of application, selecting the correct hinge is important not only for the hinge itself but also for the overall performance of the door opening.
Commercial doors can be opened and closed thousands of times during their service life.
The more frequently a door is used, the more important hinge construction becomes.
Ball bearing hinges are designed to reduce friction between moving hinge components. This can help minimize wear and maintain smoother operation over time.
Plain bearing hinges have a simpler construction and can work well in appropriate applications, but they may not be the first choice for heavy, high-cycle commercial doors.
Therefore, when evaluating hinge cost, it is useful to consider total cost of ownership, not just the initial purchase price.
A lower-cost hinge may be suitable for a low-use door, while a higher-performance hinge can be more appropriate when reliability and frequent operation are critical.
Door operation is another noticeable difference.
As plain bearing hinges rely on direct contact between moving components, friction can increase as the hinge wears.
Ball bearing hinges introduce rolling bearing elements into the hinge assembly, helping reduce friction during movement.
This can contribute to:
Smoother opening
Easier door operation
Reduced friction
More consistent performance
Less noticeable hinge noise in many applications
For buildings where doors are used frequently, smooth operation can make a significant difference to the user experience.
Ball bearing hinges are generally a strong choice when the door is:
Heavy
Wide
Frequently used
Located in a commercial building
Equipped with a door closer
Part of a high-traffic entrance
Used in an institutional environment
Required to provide reliable long-term performance

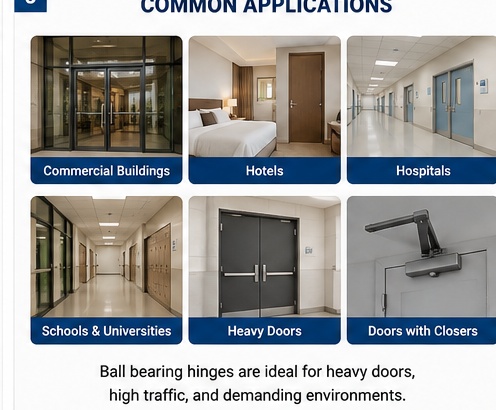

Typical applications include:
Office buildings, retail stores, shopping centers, and other commercial facilities often have doors that experience frequent daily use.
Hotel entrances, guestroom corridors, service areas, and other high-use openings can benefit from reliable hinge performance.
Healthcare facilities can have doors that experience frequent operation throughout the day. Hinge durability and smooth operation are therefore important considerations.
Classrooms, corridors, entrances, and other institutional openings may experience significant traffic.
Heavy solid-core or metal doors can place greater demands on the hinge system and may benefit from ball bearing construction.
Plain bearing hinges can be a practical choice when:
The door is relatively lightweight
Traffic frequency is low
The application is less demanding
The project prioritizes cost efficiency
The door does not require the additional performance of a ball bearing design
For example, a low-traffic interior door may not require the same hinge construction as a busy commercial entrance.
The key is to match the hinge to the application rather than selecting a hinge based solely on price.
Not necessarily in every application.
Ball bearing hinges generally offer advantages for heavy doors, high-traffic applications, and demanding commercial environments.
Plain bearing hinges, however, can be a practical and economical option for lightweight and lower-frequency applications.
The better question is:
Which hinge is right for my door?
Consider these five factors:
Door weight
Traffic frequency
Door width and size
Whether a door closer or other hardware is installed
Required durability and project specifications
Once these factors are understood, choosing between ball bearing and plain bearing hinges becomes much easier.
Use the following guide as a starting point:
You have a heavy commercial door
The door is opened frequently
The door is equipped with a door closer
The opening is in a high-traffic area
Smooth and reliable operation is important
Long-term durability is a priority
The door is lightweight
The opening has relatively low traffic
The application is residential or light commercial
A simple and economical hinge solution is preferred
For projects with specific fire-rating, certification, size, or hardware requirements, the hinge should always be selected according to the applicable project specifications and tested/approved assembly requirements.
For commercial door projects, hinge selection should be treated as part of the overall door hardware specification.

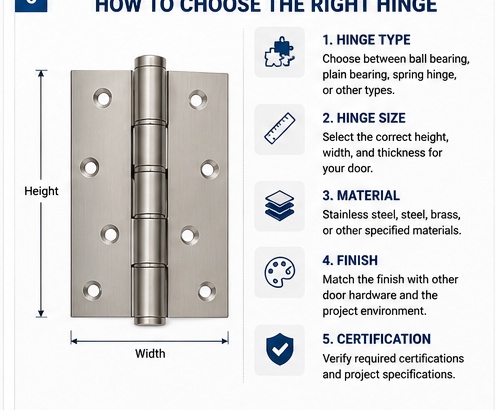

Before ordering, confirm:
Determine whether the application requires:
Ball bearing
Plain bearing
Spring hinge
Another specialized hinge design
Common commercial hinge sizes include different combinations of height and width. The correct size depends on the door construction, weight, thickness, and project requirements.
Depending on the application, hinges may be manufactured from materials such as:
Steel
Stainless steel
Brass
Other specified materials
For exterior or corrosive environments, material selection becomes especially important.
The hinge finish should coordinate with the other architectural hardware and meet the project's appearance and environmental requirements.
For commercial and fire-rated applications, always verify the required certification, listing, test standard, and approved configuration before specifying a product.
This is particularly important for fire-rated door assemblies.
Cross Hardware specializes in architectural door hardware and offers a range of door hinge solutions, including Ball Bearing Hinge UL and Plain Bearing Hinge UL products.
Our door hinge range is designed for different applications and project requirements, allowing distributors, importers, contractors, and architectural hardware buyers to select suitable hinge solutions.
Our product range includes:
Ball Bearing Hinges
Plain Bearing Hinges
Spring Hinges
Continuous Hinges
Other door hardware solutions
Cross Hardware also provides other architectural hardware products, including door closers, door locksets, door handles, cylinders, and barn door hardware.
For buyers looking for a reliable door hardware supplier, we can support OEM/ODM requirements and help customers select suitable products according to application and specification.
Ball bearing hinges are generally better suited to heavy doors, high-traffic applications, and demanding commercial environments because the bearing design reduces friction during operation.
Plain bearing hinges can be a suitable and economical option for lightweight doors and lower-frequency applications.
The main difference is the bearing construction. Ball bearing hinges use ball bearings within the hinge assembly to reduce friction, while plain bearing hinges rely on direct contact between the hinge components.
Yes. Plain bearing hinges can be suitable for certain commercial applications, particularly lighter doors and openings with lower traffic. The correct choice depends on the door weight, frequency of use, and project requirements.
A ball bearing hinge is generally recommended when a door is heavy, frequently used, equipped with a door closer, or located in a demanding commercial environment.
Ball bearing hinges generally have a higher initial cost than plain bearing hinges because of their bearing construction. However, for demanding applications, their performance and durability can make them a more appropriate long-term choice.
Fire-rated door assemblies have specific requirements. The hinge must be properly listed, tested, and approved for the intended fire-rated application and installed according to the applicable requirements. Always verify the certification and approved assembly configuration before specifying a hinge.
Choosing between ball bearing hinges and plain bearing hinges is not simply a matter of choosing the more expensive option.
The right hinge depends on the application.
For heavy doors, high-traffic commercial openings, and applications requiring smooth and reliable operation, ball bearing hinges are often the preferred solution.
For lightweight doors and lower-traffic applications, plain bearing hinges can provide a practical and cost-effective option.
By considering door weight, traffic frequency, door hardware, material, size, certification, and project requirements, you can select the right hinge for reliable long-term door performance.
If you are sourcing commercial door hinges, ball bearing hinges, or plain bearing hinges, contact Cross Hardware to discuss your project requirements and find the right solution for your application.
