Full Surface Continuous Geared Aluminum Hinges: Specifications and Applications

Continuous geared aluminum full surface hinges are essential for doors that require high performance, durability, and smooth operation. They are widely used in commercial and industrial environments where robust and reliable hardware is crucial. In these settings, door hardware must withstand constant use, resist environmental stresses, and ensure security, making the choice of hinge particularly important. Zhejiang Cross Hardware offers superior full surface continuous geared aluminum hinges, specifically models KSCH001 and KSCH002. This comprehensive guide will explore their features, benefits, installation process, application scenarios, and comparisons with other types of hinges, providing an in-depth understanding for potential users. By delving into the specifics, this guide aims to assist building managers, contractors, and end users in making informed decisions to enhance the functionality and durability of their door systems.

Product Overview

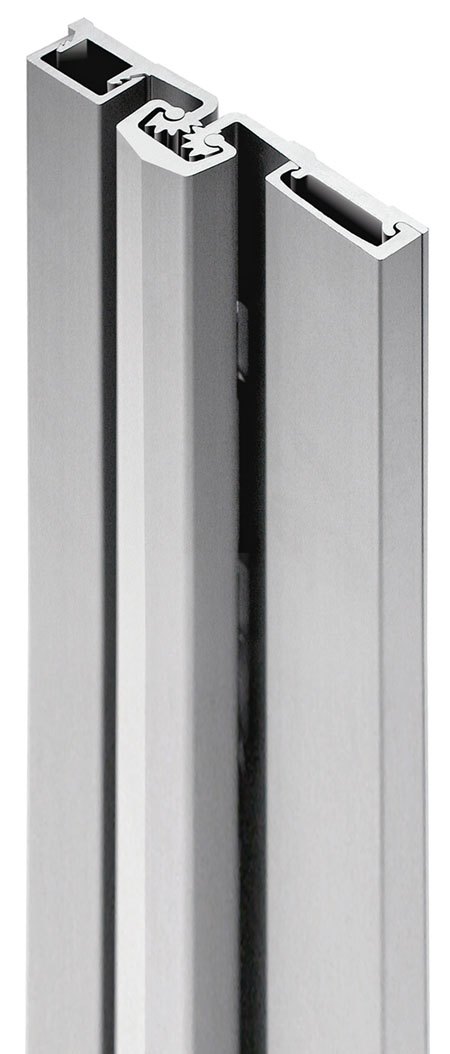

Continuous Geared Aluminum Full Surface Hinges by Zhejiang Cross Hardware are meticulously engineered to deliver superior performance and longevity. These hinges are perfect for environments where durability and reliable operation are paramount, such as schools, hospitals, office buildings, and industrial facilities. They are crafted from high-grade aluminum, providing excellent resistance to wear and tear, making them suitable for high-traffic areas.

Key Features:

1. Durability: Constructed from high-quality aluminum, these hinges are resistant to rust and corrosion, ensuring long-term use even in harsh environments.

2. Smooth Operation: The continuous geared mechanism allows for seamless, quiet operation, reducing wear on both the door and the frame.

3. Full Surface Mounting: This feature simplifies installation and enhances the stability of the door, making it a preferred choice for various applications.

Benefits of Continuous Geared Aluminum Full Surface Hinges

Enhanced Security: Continuous hinges run the full length of the door, providing better security compared to traditional hinges. This design makes it more difficult for intruders to tamper with or remove the door. Unlike traditional hinges, which can be pried apart or have their pins removed, continuous geared aluminum full surface hinges eliminate these vulnerabilities by distributing the load across the entire length of the door. This not only increases the door's resistance to forced entry but also ensures that the door remains securely attached to the frame under heavy use or impact.

Reduced Maintenance: The robust design of these hinges means they require less maintenance. The smooth operation reduces the wear and tear on the door and frame, leading to fewer repairs and replacements. Traditional hinges often suffer from alignment issues and sagging over time, especially under heavy usage. Continuous geared aluminum full surface hinges, however, maintain their alignment and functionality much longer due to their integrated gear mechanism and full-length support. This reduces the frequency of maintenance checks and the associated costs, making them a cost-effective choice in the long run.

Aesthetic Appeal: These hinges offer a clean, streamlined look that can enhance the overall appearance of the door system. They are available in various finishes to match different design preferences. The seamless design of continuous geared hinges eliminates the need for multiple visible hinge points, creating a more aesthetically pleasing door appearance. This can be particularly beneficial in commercial settings, such as offices and retail spaces, where the visual appeal of the door systems can contribute to the overall interior design. Available finishes include brushed aluminum, polished brass, and anodized colors, allowing for customization to fit any architectural style.

Longevity: Made from durable aluminum, these hinges are built to withstand heavy use and harsh conditions, providing a long-lasting solution for high-traffic areas. Aluminum is known for its corrosion-resistant properties, making these hinges suitable for environments exposed to moisture, chemicals, or extreme temperatures. This durability ensures that the hinges will not only last longer but also maintain their performance and appearance over time. The continuous gear mechanism also distributes the stress evenly along the door, reducing the likelihood of mechanical failure and extending the life of both the hinge and the door itself.

Detailed Installation Instructions

Proper installation is crucial for the optimal performance of continuous geared aluminum full surface hinges. The following steps outline the comprehensive process for installing full surface hinges KSCH001 and KSCH002.

I. Pre-Installation Preparations

Clearance Requirements:

For single and double doors, it is essential to calculate the clearance requirements accurately:

· Single Door: Frame Opening - Total Clearance Required = Net Door Width

· Double Door: Frame Opening - Total Clearance Required = Net Door Width Per Door

Clearance Details for Single Doors:

· Hinge Thickness: 0”

· Lock Side Clearance: 1/8” (3.2mm)

· Clearance for Irregularities: 1/16” (1.6mm)

· Total Clearance Required: 3/16” (4.8mm)

Clearance Details for Double Doors:

· First Hinge Thickness: 0”

· First Clearance for Irregularities: 1/16” (1.6mm)

· Edge to Edge Clearance: 3/16” (4.8mm)

· Second Hinge Thickness: 0”

· Second Clearance for Irregularities: 1/16” (1.6mm)

· Total Clearance Required: 5/16” (7.9mm)

II. Installation Process

1. Attaching the Hinge to the Frame:

· With the hinge in the open position, use a shim to position the top end of the hinge 1/8” below the header to allow for door clearance. This ensures that the door will have enough space to swing freely without scraping the floor or frame.

· Line up the hinge with the door side edge of the frame or your alignment line, ensuring no part of the hinge protrudes beyond the frame. This alignment is crucial for a smooth operation and aesthetic finish.

· Fasten the frame leaf at one top and one bottom hole using the #12-24 flathead screws provided. For wood frames, use the #12 x 1-1/2” wood screws and a 5/32” drill bit to pre-drill the holes. This helps prevent the wood from splitting and ensures a secure fit.

· Note: The frame leaf is mounted to the face of the frame using #12-24 x 1 1/16” flat head self-drill screws. These screws are designed to cut through the material without the need for pre-drilling, saving time and effort.

2. Preparing the Door:

· Attach the door leaf to the door through the locator holes using the panhead tek screws. These screws are designed to provide a strong, reliable hold.

· Optionally, all locator holes may be used for maximum stability and alignment precision.

· A #3 Phillips driver is required to secure the screws properly. This driver size ensures you can apply the necessary torque without stripping the screw heads.

· Remove shims and check door clearances. Occasionally, the door will sag slightly when shims are removed; adjust as needed to bring the door back into alignment. Ensuring the door is level and properly aligned will prevent operational issues.

· Locate and drill holes for the thru bolts in the door, marking the location of the thru bolt holes with a 3/8” drill. This step ensures the door and hinge components are securely connected.

· Note: The door leaf is provided with 1/4-20 x 1-1/4” (Screw + Post), which are designed for a secure and tight fit.

3. Attaching the Door:

· Attach the door with the top and bottom thru bolts, making any further adjustments on the frame leaf. Ensure the door is correctly aligned to avoid operational issues.

· Completely secure the frame leaf using the flathead screws. Mark and drill the remaining thru bolt holes in the door, and secure the door leaf with the thru bolts and 1/4-20 shoulder screws. This step ensures that the door is firmly attached and operates smoothly.

4. Installing Covers:

· Back out set screws installed in the side of the door cover. This allows for the cover to be positioned correctly.

· Line up the door or frame cover with the top end of the hinge. Starting at the top, apply pressure along the length of the cover, snapping it into place as you go down the hinge. This ensures a neat and professional appearance.

· Tighten the set screws securely with a 3/64” Allen wrench. For added security, apply a bead of construction or panel adhesive inside the door cover or over the thru bolt heads. This helps to prevent the cover from coming loose over time.



III. Additional Notes and Considerations

· KSCH001: Requires a minimum of 7/8” of frame face for mounting. If you have more than 7/8” frame face, mark an alignment line on the frame face from 1” up to 1-5/16” away from the center of the gap between the jamb and the door. This ensures proper positioning and operation.

· KSCH002: Requires re-templating existing overhead closers to match the swing clear pivot point of the hinge. If not re-templated, the door will only open to 70 degrees in a 90-degree opening. Proper templating ensures full range of motion.

· Reinforcing and Rivnuts: No reinforcing is necessary except on extremely high-frequency, extremely heavy, or extra-wide doors. Rivnuts are recommended in the frame when door weight exceeds 450 pounds (up to 650 pounds). Rivnuts provide additional strength and durability.

· Pairs of Doors with Mullions: If the mullion is between the doors, treat as a single door installation. If the mullion is behind the doors, treat as a double door installation. This consideration ensures proper installation technique for different door configurations.

· Grouted/Slushed-in Frames: For ease of installation, it is recommended that some sort of mudguard be installed behind the frame. Do not use self-drilling, thread-forming screws with grouted steel frames having no mudguard. If mudguards have not been used, carefully drill pilot holes through the frame and remove grout for screw clearance. Do not oversize holes in the frame. Proper preparation of grouted frames ensures secure fastening and avoids damage to the frame.

Applications of Continuous Geared Aluminum Full Surface Hinges

Commercial Buildings: Ideal for office buildings, retail stores, and other commercial establishments where doors undergo frequent use. Continuous geared aluminum full surface hinges provide durability and smooth operation, ensuring doors withstand constant traffic without sagging or misalignment.

Educational Institutions: Perfect for schools and universities where high-traffic doors need reliable and durable hardware. These hinges offer the robustness necessary for environments with frequent opening and closing, minimizing maintenance needs and ensuring safety.

Healthcare Facilities: Suitable for hospitals and clinics where doors must operate smoothly and quietly to maintain a calm environment. Continuous geared hinges contribute to noise reduction and ensure doors function effortlessly, which is crucial in healthcare settings.

Industrial Facilities: Excellent for warehouses and manufacturing plants where robust and heavy-duty doors are essential. These hinges can support heavy doors and provide a secure closure, making them ideal for industrial applications where safety and durability are paramount.

Public Buildings: Great for government buildings and other public facilities that require secure and long-lasting door solutions. Continuous geared aluminum full surface hinges ensure doors remain in proper alignment and function smoothly despite heavy public use.

Hospitality Industry: Suitable for hotels, resorts, and restaurants where aesthetics and functionality are important. These hinges offer a sleek appearance while providing the necessary strength to handle high traffic, ensuring doors open and close smoothly without compromising style.

Multi-Family Residential Buildings: Ideal for apartment complexes and condominiums where doors experience frequent use by multiple residents. Continuous geared hinges provide the reliability and strength needed to support entry and interior doors, reducing the need for frequent repairs and replacements.

Transportation Hubs: Perfect for airports, train stations, and bus terminals where doors must accommodate high volumes of passengers. These hinges ensure doors operate efficiently and withstand the wear and tear associated with continuous use in busy transportation environments.

Retail Environments: Suitable for shopping malls, department stores, and boutique shops where doors are used frequently by customers. Continuous geared aluminum full surface hinges provide a durable solution that maintains door alignment and smooth operation, enhancing the shopping experience.

Entertainment Venues: Ideal for theaters, concert halls, and sports arenas where doors must handle heavy traffic during events. These hinges offer the strength and durability required for doors in entertainment settings, ensuring reliable performance and longevity.

Comparison with Other Types of Hinges

Full Surface vs. Full Mortise Hinges:

· Full Surface Hinges: Mounted on the surface of the door and frame, making installation easier and providing a higher degree of stability.

· Full Mortise Hinges: Installed within the mortise cutout in the door and frame, offering a more concealed look but requiring precise installation.



Full Surface vs. Swing Clear Hinges:

· Full Surface Hinges: Provide a simple installation process and ensure the door operates smoothly without requiring additional space.

· Swing Clear Hinges: Designed to swing the door completely clear of the opening when open, ideal for applications requiring maximum clearance.

Technical Specifications and Testing

Durability Testing:

Continuous geared aluminum full surface hinges by Zhejiang Cross Hardware have undergone rigorous testing to ensure durability and performance. These hinges have been tested to withstand 25 million open/close cycles, equating to more than 60 years of high-traffic use. This extensive testing ensures that the hinges can handle the demands of busy commercial environments, reducing the need for frequent replacements and repairs.

Fire Rating:

The continuous geared aluminum full surface hinges are 90-minute fire rated, with an optional 3-hour fire rating. This fire rating ensures that the hinges can maintain their integrity and functionality even in the event of a fire, providing additional safety and security.

Warranty:

Zhejiang Cross Hardware offers a comprehensive warranty on their continuous geared aluminum full surface hinges. This warranty covers any hinge failure under normal use, providing peace of mind and ensuring that users can rely on the product for years to come.

Best Practices for Maintenance

While continuous geared aluminum full surface hinges require minimal maintenance, following best practices can further enhance their longevity and performance:

1. Regular Inspections: Conduct periodic inspections to ensure that the hinges are functioning correctly and that there is no visible damage or excessive wear.

2. Lubrication: Apply a suitable lubricant to the geared mechanism as needed to ensure smooth operation.

3. Tightening Screws: Check and tighten all screws and bolts periodically to ensure that the hinge remains securely fastened to the door and frame.

4. Cleaning: Clean the hinges regularly to remove any dirt or debris that could affect their performance.

Environmental Considerations

Sustainability:

Continuous geared aluminum full surface hinges from Zhejiang Cross Hardware are designed with sustainability in mind. The use of high-quality aluminum not only ensures durability but also promotes recyclability. Aluminum is a sustainable material that can be recycled multiple times without losing its properties, making these hinges an environmentally friendly choice.

Energy Efficiency:

These hinges contribute to energy efficiency by ensuring a tight fit and smooth operation, which helps in maintaining proper insulation. By reducing air leaks and ensuring that doors close properly, these hinges can help in maintaining indoor temperatures, thereby reducing energy consumption for heating and cooling.

Customization and Adaptability

Finishes and Colors:

Continuous geared aluminum full surface hinges from Zhejiang Cross Hardware are available in various finishes and colors to match different design aesthetics. This allows for greater customization and ensures that the hinges can blend seamlessly with the overall decor of the building.

Size and Load Capacity:

These hinges come in various sizes and load capacities to accommodate different types of doors, from lightweight interior doors to heavy exterior doors. The adaptability in size and capacity makes them suitable for a wide range of applications, ensuring that they can meet the specific needs of any project.

Industry Standards and Certifications

Compliance with Standards:

Continuous geared aluminum full surface hinges from Zhejiang Cross Hardware comply with industry standards and certifications, ensuring that they meet the highest quality and safety requirements. This includes compliance with ADA (Americans with Disabilities Act) requirements, ensuring that the hinges provide ease of use for all individuals, including those with disabilities.

ISO Certification:

The manufacturing process of these hinges adheres to ISO quality standards, ensuring consistency, reliability, and high performance. ISO certification is a testament to the company’s commitment to quality and continuous improvement.

Customer Support and Resources

Technical Support:

Zhejiang Cross Hardware offers comprehensive technical support to assist with installation, maintenance, and troubleshooting. Their team of experts is available to provide guidance and answer any questions, ensuring that customers can achieve optimal performance from their hinges.

Installation Guides and Resources:

Detailed installation guides and resources are available to ensure that the hinges are installed correctly. These guides provide step-by-step instructions, diagrams, and tips to help users achieve a successful installation.

Innovations and Trends

Sustainable Materials:

With a growing emphasis on sustainability, future developments may include the use of more eco-friendly materials and manufacturing processes. This could further reduce the environmental impact of producing and using continuous geared aluminum full surface hinges.

Enhanced Customization:

As design trends evolve, there may be an increased demand for more customizable hinge options. This could include a wider range of finishes, colors, and decorative elements to meet diverse aesthetic preferences.

Contact Information

For more information or to purchase, contact:

Zhejiang Cross Hardware Co., Ltd.

Address: No.515, Suizhong Road, Dushangangqu, Zhejiang (314204)

Phone: +86-573-89173989

Fax: +86-573-89173993

Email: Lewis@cross-hardwares.com

Continuous geared aluminum full surface hinges from Zhejiang Cross Hardware Co., Ltd. offer a durable, secure, and aesthetically pleasing solution for a variety of applications. Their robust construction and smooth operation make them ideal for high-traffic areas, providing long-term reliability and reduced maintenance. By following the detailed installation instructions provided, you can ensure a successful setup and optimal performance. For further inquiries or technical support, do not hesitate to reach out to their customer service team. Invest in these high-quality hinges today to enhance the functionality and security of your doors.
