Single Acting Spring Hinges: Enhancing Security and Efficiency with Zhejiang Cross Hardware Co., Ltd.

When it comes to door hardware, hinges play a crucial role in ensuring smooth operation and long-term durability. Among the myriad of options available, single acting spring hinges have carved a niche for themselves due to their versatility and efficiency. One such example is the high-quality Single Acting Spring Hinge by Zhejiang Cross Hardware Co., Ltd. In this blog, we will delve into the features, benefits, and applications of these hinges, underscoring why they are a smart choice for various settings.

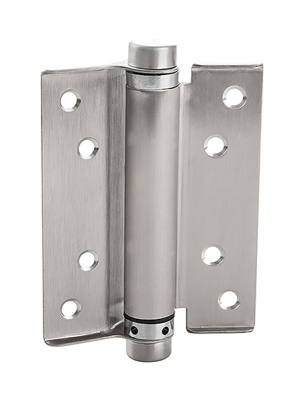

What Are Single Acting Spring Hinges?

Single acting spring hinges are a type of hinge that allows a door to swing in one direction only. The "spring" component in these hinges is designed to automatically close the door after it has been opened. This self-closing feature is particularly useful in maintaining privacy, security, and energy efficiency in a variety of settings. The single acting design ensures that the door returns to its closed position, offering convenience and reliability.

Features of Zhejiang Cross Hardware Single Acting Spring Hinges

Non-Handed Design: One of the standout features of these hinges is their non-handed design. This means that they can be installed on both left-hand and right-hand doors without any modifications. This flexibility makes them a versatile choice for different door orientations, simplifying the installation process and reducing the need for multiple hinge types.

Durable Steel Material: Constructed from high-quality steel, these hinges are built to withstand significant wear and tear. Steel is known for its strength and durability, ensuring that the hinges can support heavy doors and endure frequent usage without compromising performance. This makes them an excellent choice for both residential and commercial applications.

Factory Set Spring Tension: The factory set spring tension feature ensures that the hinges are ready to use straight out of the box. The preset tension provides consistent and reliable door closing action, eliminating the need for manual adjustments. This convenience saves time during installation and ensures optimal performance from day one.

Compatibility Considerations: It's important to note that the pivot points of these hinges do not align with standard full mortise butt hinges. This unique design aspect may require specific installation considerations, but it also offers a tailored fit for certain door types. This specificity ensures that the hinges perform optimally in their intended applications.

Versatile Screw Options: The hinges come with #12 x 1-1/4" wood screws and #12 x 1/2" 12-24NC machine screws. This variety of screw options allows for secure attachment to both wooden and metal door frames, enhancing their versatility and ensuring a secure installation in various materials.

Optimal Size: With a size of 6" x 4.5", these hinges provide robust support for medium to large doors. The dimensions are carefully chosen to balance strength and practicality, making them suitable for a wide range of door types and sizes.

Product Range and Specifications

At Zhejiang Cross Hardware Co., Ltd., we take pride in offering a diverse range of high-quality single acting spring hinges tailored to meet various needs. Our spring hinges are meticulously crafted from robust steel and stainless steel, ensuring durability and reliable performance across different applications.

Model Variations and Sizes: Our product lineup includes multiple models such as SP445534, SP454034, SP404033, SP404027, SP404025, SP403027, SP353527, and SP353525. Each model is available in different open sizes and thicknesses, ranging from 3.4 mm to 3.2 mm, to accommodate different door weights and installation requirements.

Material and Finish: Constructed from steel and stainless steel, our spring hinges are polished, plated, or bonderized and prime coated for painting. This process not only enhances the aesthetic appeal but also extends the longevity of the hinges by providing an additional layer of protection against corrosion and wear.



Installation Flexibility: All our hinges come with a variety of screw options to ensure a secure and adaptable installation. The hinges are available with machine screws (MS) and wood screws (WS), including sizes like 1/2" x 12-24, 1/4" x 12, 1" x 14, and more. This versatility ensures that our hinges can be securely attached to both wooden and metal door frames, meeting diverse installation needs.

Standard Compliance: Our hinges are designed according to ANSI templates and are available in both square and radius corner options (1/4" & 5/8"). This ensures compatibility with industry standards, making them a reliable choice for various architectural applications.

Load Capacity: Our single acting spring hinges are engineered to support different door weights, from 40 lbs to 150 lbs, depending on the hinge size. For example, a 3-1/2" x 3-1/2" hinge can support up to 70 lbs with one spring hinge or 40 lbs with two butt hinges, while a 4-1/2" x 4-1/2" hinge can support up to 150 lbs with three spring hinges.

Benefits of Using Single Acting Spring Hinges

Enhanced Security: The automatic closing feature of single acting spring hinges enhances security by ensuring that doors are not inadvertently left open. This is particularly beneficial in settings where security is paramount, such as in commercial buildings, schools, and healthcare facilities.

Improved Energy Efficiency: In environments where temperature control is crucial, such as in HVAC-controlled buildings, the self-closing action of these hinges helps maintain consistent indoor temperatures. This can lead to significant energy savings by reducing the loss of heated or cooled air through open doors.

Convenience and Accessibility: These hinges offer a high level of convenience, especially in high-traffic areas. Doors fitted with single acting spring hinges close automatically, reducing the need for manual intervention and ensuring that doors are consistently closed behind users. This feature is particularly useful in spaces where people frequently pass through with their hands full, such as in hospitals or restaurants.

Noise Reduction: By ensuring that doors close automatically and gently, single acting spring hinges help in reducing noise levels. This is especially important in environments where a quiet atmosphere is essential, such as in libraries, offices, and residential buildings.

Applications of Single Acting Spring Hinges

Single acting spring hinges are versatile and can be used in a wide range of applications. Here are a few examples:

Residential Buildings: In homes, these hinges are ideal for interior doors, such as those leading to kitchens, bathrooms, and laundry rooms. They help in maintaining privacy and containing noise within specific areas, enhancing the overall living experience.

Commercial Spaces: In commercial settings, single acting spring hinges are commonly used on doors in offices, retail stores, and restaurants. They ensure that doors close automatically, contributing to security and energy efficiency.

Healthcare Facilities: In hospitals and clinics, these hinges are invaluable for maintaining hygiene and privacy. They help in ensuring that doors to patient rooms, examination rooms, and surgical areas remain closed, reducing the risk of contamination and enhancing patient privacy.

Educational Institutions: Schools and universities benefit from the use of single acting spring hinges on classroom and restroom doors. The automatic closing feature helps in maintaining a quiet and orderly environment, conducive to learning and focus.

Environmental Impact and Sustainability



Using single acting spring hinges, such as those offered by Zhejiang Cross Hardware Co., Ltd., brings several environmental benefits. These hinges are designed to enhance energy efficiency by ensuring doors close automatically, thereby reducing the loss of heated or cooled air. This feature is particularly beneficial in HVAC-controlled buildings where maintaining consistent indoor temperatures is crucial, leading to significant energy savings over time.

Zhejiang Cross Hardware Co., Ltd. is committed to sustainability and environmental responsibility. The materials used in our hinges, including high-quality steel and stainless steel, are chosen for their durability and recyclability. Our manufacturing processes are optimized to minimize waste and reduce environmental impact. Additionally, the finishes applied to our hinges, such as polishing, plating, and bonderizing, are performed using eco-friendly techniques that reduce the release of harmful substances into the environment. By prioritizing sustainable practices, we ensure that our products not only meet high-performance standards but also contribute positively to environmental conservation.

Comparative Analysis with Competitors

Zhejiang Cross Hardware Co., Ltd.'s single acting spring hinges stand out in the market for several reasons, setting them apart from competitors in terms of quality, price, and features.

Quality:

Our hinges are crafted from robust steel and stainless steel, ensuring exceptional durability and resistance to wear and tear. The meticulous manufacturing process and stringent quality control measures guarantee that each hinge meets high standards of performance and reliability. In contrast, some competitors may use lower-grade materials or less rigorous production methods, leading to inferior products that may not withstand heavy usage or harsh conditions as effectively.

Price:

While maintaining high quality, Zhejiang Cross Hardware Co., Ltd. offers competitive pricing, providing excellent value for money. Our efficient manufacturing processes and economies of scale allow us to keep costs low without compromising on quality. Some competitors may either offer lower prices at the expense of quality or provide high-quality products at significantly higher prices, making our hinges a more balanced and cost-effective choice. By choosing Zhejiang Cross Hardware Co., Ltd., customers benefit from a product that excels in quality, offers competitive pricing, and includes features that enhance functionality and ease of use, making our single acting spring hinges the optimal choice in the market.

Installation Guide for Single Acting Spring Hinges by Zhejiang Cross Hardware Co., Ltd.

Incorporating the high-quality Single Acting Spring Hinges from Zhejiang Cross Hardware Co., Ltd. into your doors can significantly enhance functionality and security. Proper installation is crucial for optimal performance. Below is a comprehensive installation guide based on the provided instructions.

Installation Instructions

1. Remove Spring Tension

· Insert the tension rod into the tension adjustment hole, rotate in the direction of the arrow (as shown in Figures 2 or 3), and remove the tension pin.

2. Locate Hinges

· Place the hinges as shown in Figure 1. Ensure that the door leaf may be mortised or surface applied to the door edge.

3. Align Door and Frame

· Align the centerline of the door with the centerline of the frame and secure the frame leaf.

For double doors:

· Mount hinges on one door with tension adjustment up and on the opposite door with tension adjustment down (as shown in Figure 1). Shims may be necessary under the edges of the frame flanges for door alignment.

Spring Tensioning Instructions

Important: Do not exceed five (5) holes tension.

1. Position the Door

· Place the door in a closed position. Wedge the door up from the floor until it is plumb.

2. Adjust Tension

· Insert the tension rod into the tension adjustment hole, rotate in the direction of the arrow (as shown in Figures 2 or 3). Only one hole of tension is recommended for bottom hinges.

3. Secure Tension Pin

· Insert the tension pin and remove the tension rod.

4. Final Adjustments

· Increase tension on the top hinges if the door sags or return action is too slow.



Diagram and Visual Instructions

The visual diagrams provided offer detailed guidance on hinge placement and tensioning:

Top View Diagrams:

· Illustrate the placement of tension holes and the rotation direction for both jamb flange and door flange applications.

Tension Rod Use:

· Depicts the correct insertion and rotation of the tension rod for both clockwise and counter-clockwise adjustments (Figures 2 and 3).

Door Alignment:

· Shows proper alignment and installation of hinges for doors with tension adjustments in different orientations (up and down).

Side Notes:

· Hinges may have arrows stamped on the barrel sides to indicate the direction for increasing tension. Lubrication can be applied if needed. Avoid using on doors with a hinge edge beveled.

Single Acting Spring Hinges vs. Other Types of Hinges

Single Acting Spring Hinges vs. Double Acting Spring Hinges

· Single Acting Spring Hinges: Allow doors to swing in one direction and automatically return to a closed position. Ideal for maintaining security and energy efficiency, particularly in settings where doors must remain closed, such as residential and commercial applications.

· Double Acting Spring Hinges: Enable doors to swing in both directions and automatically return to a closed position. Suitable for high-traffic areas requiring hands-free passage, like kitchens and medical facilities. However, they do not swing the door completely clear of the opening, limiting accessibility in some cases.

Single Acting Spring Hinges vs. Swing Clear Hinges

· Single Acting Spring Hinges: Automatically close the door in one direction, enhancing security and privacy. They are particularly useful in spaces where doors must remain closed to control temperature or noise.

· Swing Clear Hinges: Swing the door completely clear of the opening when fully open, maximizing the clear width of the doorway, which is crucial for ADA compliance or moving large objects. They allow movement in one direction only and do not automatically close the door.

Single Acting Spring Hinges vs. Full Surface Hinges

· Single Acting Spring Hinges: Provide self-closing functionality in one direction, improving convenience and security. Though they may be visible when the door is closed, they offer the added benefit of ensuring doors are not left open.

· Full Surface Hinges: Mounted on the surface of both the door and frame, these hinges are easier to install and adjust. They provide stability but are always visible and do not offer self-closing capability.

Single Acting Spring Hinges vs. Full Mortise Hinges

· Single Acting Spring Hinges: Not typically concealed but offer reliable performance with automatic closing in one direction. Ideal for settings where door closure is crucial for security and energy efficiency.

· Full Mortise Hinges: Installed within a mortise cutout, providing a clean and concealed look that enhances the door’s aesthetic appeal. They allow movement in one direction only and do not automatically close the door.

Single Acting Spring Hinges vs. Half Mortise Hinges

· Single Acting Spring Hinges: Allow doors to swing in one direction and return to a closed position automatically, suitable for environments where maintaining door closure is important.

· Half Mortise Hinges: Combine the aesthetics of a concealed hinge with the ease of installation of a surface-mounted hinge. They offer a partially concealed look but do not provide automatic closure.

Single Acting Spring Hinges vs. Half Surface Hinges

· Single Acting Spring Hinges: Provide efficient operation by allowing the door to move in one direction and self-close, ideal for busy areas needing consistent door closure.

· Half Surface Hinges: Similar to half mortise hinges, one leaf is surface-mounted which provides easier installation. They do not offer the automatic closing feature of single acting spring hinges.

Single Acting Spring Hinges vs. Butt Hinges

· Single Acting Spring Hinges: Facilitate door movement in one direction and include a self-closing mechanism, enhancing usability and security in various settings.

· Butt Hinges: Common in residential applications, they are smaller and typically allow door movement in one direction. They are easy to install but lack the self-closing feature of single acting hinges.

Single Acting Spring Hinges vs. Continuous Hinges

· Single Acting Spring Hinges: Specialize in allowing doors to open in one direction and close automatically, optimized for frequent use and high-traffic areas.

· Continuous Hinges: Also known as piano hinges, these run the entire length of the door, distributing weight evenly and reducing stress. They provide smooth operation but do not inherently allow for automatic closing.

Each hinge type offers specific benefits tailored to different applications, making the choice dependent on the particular needs of the installation environment. Single acting spring hinges stand out in scenarios where unidirectional movement and automatic closing are prioritized, providing enhanced security, energy efficiency, and convenience. Whether for residential, commercial, or specialized settings, these hinges offer reliable and efficient performance, ensuring doors remain closed when necessary.

Maintenance and Care for Single Acting Spring Hinges

Proper maintenance and care are essential to ensure the longevity and optimal performance of single acting spring hinges. Here are some key points to consider:

Regular Inspection

· Check for Wear and Tear: Periodically inspect the hinges for any signs of wear, rust, or damage. Look for loose screws, worn-out springs, or misalignment.

· Lubrication: Apply a light lubricant to the moving parts of the hinge to ensure smooth operation. This should be done at least once a year or as needed.

Cleaning

· Dust and Dirt Removal: Keep the hinges free from dust and dirt by wiping them down with a soft cloth. Avoid using abrasive materials that could scratch the surface.

· Corrosion Prevention: For outdoor applications or in humid environments, ensure the hinges are properly treated or coated to prevent rust. Regularly clean and dry the hinges to minimize moisture exposure.

Adjustment and Calibration

· Spring Tension Adjustment: Over time, the spring tension may need adjustment to maintain proper door closing speed. Follow the manufacturer’s guidelines for adjusting the tension correctly.

· Alignment: Ensure the hinges remain properly aligned with the door and frame. Misalignment can cause uneven wear and affect the self-closing mechanism.

Replacement Parts

· Availability of Spare Parts: Keep spare screws, tension rods, and other parts on hand for quick replacements when needed. Using the correct parts will ensure the hinges function as intended.

· Professional Assistance: For significant repairs or replacements, consider consulting a professional to avoid damaging the door or hinge.

Regular maintenance and care will not only extend the lifespan of single acting spring hinges but also ensure they continue to provide reliable and efficient performance in various applications.

Single acting spring hinges, such as those offered by Zhejiang Cross Hardware Co., Ltd., exemplify a blend of innovation, reliability, and practicality in door hardware. Their non-handed design, durable steel construction, and factory-set spring tension make them an ideal choice for a wide range of applications, from residential buildings to commercial spaces, healthcare facilities, and educational institutions. The automatic closing feature enhances security, energy efficiency, convenience, and noise reduction, making these hinges a valuable addition to any door system.

Moreover, the comprehensive installation and maintenance guidelines provided ensure that users can maximize the benefits of these hinges with minimal effort. Regular maintenance and proper care are crucial to prolonging the lifespan of the hinges and maintaining their optimal performance. Zhejiang Cross Hardware Co., Ltd.'s single acting spring hinges stand out for their versatility and efficiency, offering a smart and reliable solution for various settings. Their ability to close doors automatically after opening is a testament to their functional design, providing peace of mind and practical benefits. As we look to the future, the importance of choosing high-quality door hardware, like single acting spring hinges, will only continue to grow, underscoring the role of such products in enhancing security, energy efficiency, and convenience in our daily lives.

With this comprehensive understanding of the features, benefits, and applications of single acting spring hinges, it is clear why they are a preferred choice in many scenarios. Whether you are a homeowner looking to enhance the functionality of your interior doors or a facility manager seeking reliable solutions for high-traffic areas, these hinges offer a practical and effective answer to your needs. Investing in high-quality door hardware, such as the single acting spring hinges from Zhejiang Cross Hardware Co., Ltd., ensures that you are equipped with durable, efficient, and versatile solutions that stand the test of time. In the ever-evolving landscape of door hardware, these hinges remain a reliable choice, embodying the perfect balance of form and function.
