What Are Power Transfer Hinges? Complete Guide and Benefits

In the field of architectural hardware, power transfer hinges have become a crucial improvement, facilitating the seamless integration of electronic systems with door mechanisms. At Zhejiang Cross Hardware Hinge Expert, we take pride in pioneering solutions that marry functionality with aesthetics. Our power transfer hinges are designed to maintain the sleek, modern look of contemporary buildings while providing reliable electrical connections for access control, security systems, and more.In this guide, we delve into the intricacies of power transfer hinges, exploring their functionality, diverse applications, installation procedures, maintenance tips, and the latest innovations. As a leader in the hinge manufacturing industry, Zhejiang Cross Hardware Hinge Expert brings you insights into why these hinges are indispensable for modern architecture and how they can elevate the security and efficiency of any building.

Power transfer hinges are important to maintaining the integrity and security of electronic access points. By concealing wiring within the hinge, they ensure a clean, tamper-proof installation that supports various devices such as electronic locks, alarms, and surveillance systems. Our expertise in creating durable, high-performance hinges guarantees that your building's security infrastructure remains robust and reliable. Join us as we explore the benefits and features of power transfer hinges, from their role in enhancing security and aesthetics to their versatility in accommodating different door types. Whether you are an architect, builder, or facility manager, understanding the value of power transfer hinges will help you make informed decisions that improve the overall functionality and security of your projects. At Zhejiang Cross Hardware Hinge Expert, we are committed to delivering excellence in every hinge we produce, ensuring that your needs are met with innovative and dependable solutions.

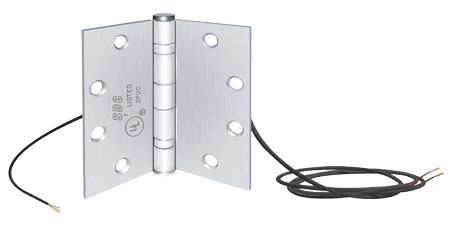

Understanding Energy Transfer Hinges

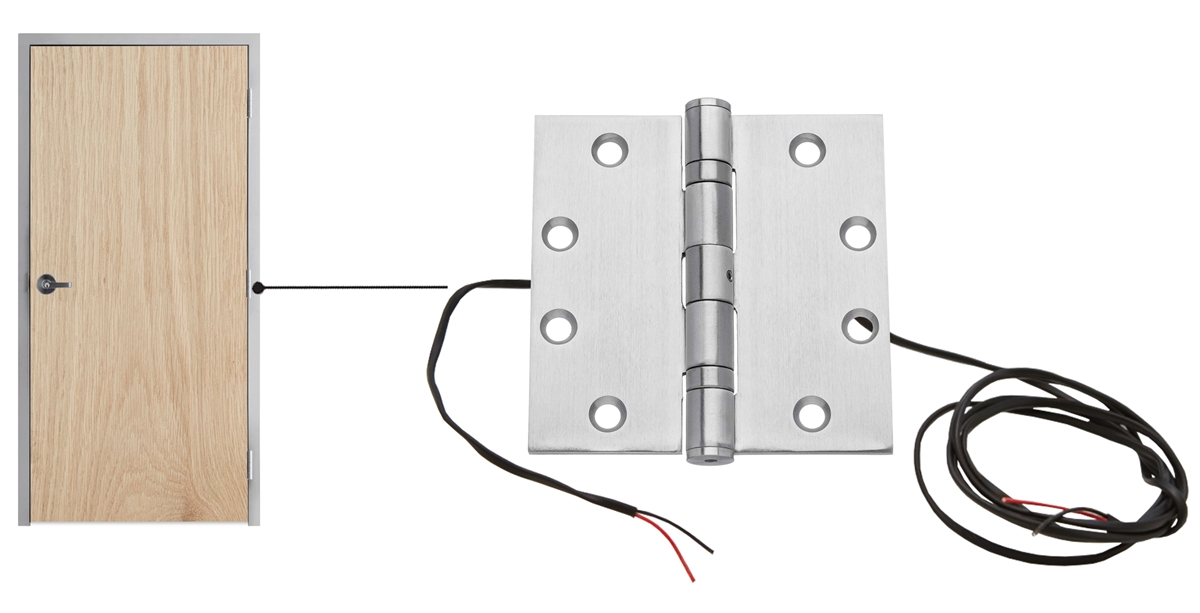

Energy Transfer Hinges are essential components for modern security and access control systems, designed to pass low voltage power from the hinge jamb to the lockset without any exposed wires. These hinges are commonly used in applications such as:

· Electronic Mortise and Cylindrical Locks

· Electric Strikes (mounted on pairs of doors)

· Electric Exit Trims

· Latch Pullback Devices

· Door-Mounted Card Readers

· Low Voltage Door Lights

The quantity and required gauge of wire depend on the hardware being used and the general purpose of the application.

Steel Ball Bearing Type Models

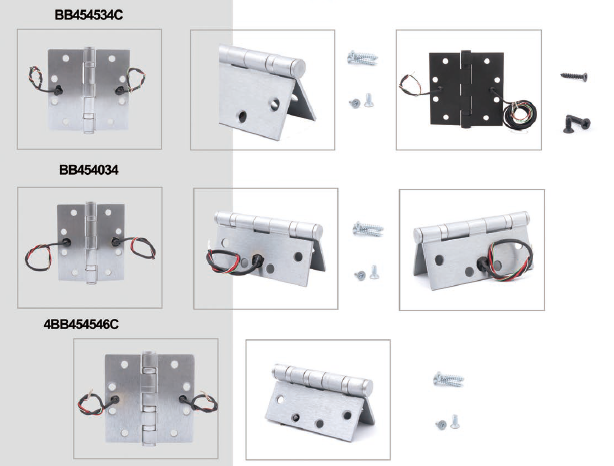

There are various models of steel ball bearing type Energy Transfer Hinges, each suited for specific applications:

1. Model BB454534C

· Includes a set of screws and has wiring for power transfer.

· Constructed as a steel ball bearing type for enhanced durability.

2. Model BB454034

· Comes with a complete set of screws and wiring.

· Designed for efficient power transfer while maintaining a sleek appearance.

3. Model 4BB454546C

· Features include screws and wiring necessary for installation.

· Built with steel ball bearings to ensure smooth operation and longevity.

These hinges are ideal for maintaining concealed wiring when the door is closed, making them suitable for high-security environments and aesthetically demanding installations. The combination of durability and functionality ensures they meet the needs of various door hardware applications.

Key Features:

Durability and Strength: Constructed from robust materials, these hinges support heavy doors while housing electrical components.

Concealed Wiring: Wires are hidden within the hinge, preventing tampering and maintaining a clean appearance.

Continuous Power Supply: Provides a reliable electrical connection for door-mounted electronic devices.

Electrical Continuity: Ensures a constant power supply between the door and frame for devices such as access control systems, alarms, and electrified locks.

High Durability: Manufactured to withstand frequent door usage without compromising the integrity of the electrical connection.

Compatibility: Suitable for various door types and materials.

Specifications:

· Material: High-grade stainless steel.

· Voltage Capacity: 12V to 24V.

· Current Rating: Continuous current flow.

· Size Variants: Multiple sizes available.

 Importance in Modern Architecture

In modern architecture, the integration of technology within the built environment is crucial. Power transfer hinges facilitate this by enabling seamless incorporation of electronic systems in doors, which are pivotal access points in any building. Whether it’s for security, automation, or monitoring, power transfer hinges ensure that these systems are discreetly and efficiently integrated.

 Applications of Power Transfer Hinges

1. Commercial Buildings

In commercial settings, security and accessibility are paramount. Power transfer hinges facilitate the integration of sophisticated access control systems, ensuring that only authorized personnel can access certain areas. Offices, retail stores, and other commercial establishments benefit from the enhanced security and functionality provided by these hinges.

2. Healthcare Facilities

Hospitals and healthcare facilities require robust security measures to protect sensitive areas such as operating rooms, pharmacies, and patient records. Power transfer hinges enable the use of electronic locks and monitoring systems, ensuring that these areas are secure yet accessible to authorized personnel.

3. Educational Institutions

Schools and universities face unique security challenges. Power transfer hinges allow for the seamless integration of access control systems, helping to secure entrances, classrooms, and administrative offices. This integration ensures that students and staff are protected while maintaining a welcoming environment.

4. Government Buildings

High-security government buildings benefit greatly from the use of power transfer hinges. These hinges support the installation of sophisticated electronic locking mechanisms and monitoring systems, ensuring that sensitive areas are well-protected and that access is strictly controlled.

5. Residential Applications

In residential settings, especially in smart homes, power transfer hinges play a crucial role. They allow homeowners to install electronic locks, smart doorbells, and surveillance cameras without visible wiring, maintaining the home’s aesthetic appeal.

Benefits of Power Transfer Hinges

1. Enhanced Security

One of the primary benefits of power transfer hinges is the enhanced security they provide. By integrating electronic locks and access control systems directly into the door, the risk of unauthorized access is significantly reduced. These systems can be programmed to allow access only to specific individuals, further enhancing security.

1. Aesthetics

Concealed wiring within the hinge maintains the door’s appearance, avoiding the unsightly look of exposed cables. This feature is particularly important in high-end commercial and residential settings where aesthetics play a crucial role.

2. Reliability

Power transfer hinges provide a consistent power supply to door-mounted electronic devices, ensuring they function seamlessly. This reliability is critical in settings where security cannot be compromised.

3. Versatility

These hinges can be used in various types of doors, including wooden, metal, and fire-rated doors. Their versatility makes them suitable for a wide range of applications, from residential buildings to high-security facilities.

4. Reduced Maintenance

By housing the wiring within the hinge, power transfer hinges reduce the wear and tear typically associated with exposed wiring. This design leads to lower maintenance needs and longer-lasting installations.

Types of Power Transfer Hinges:

Standard Power Transfer Hinges

Designed for regular doors with basic access control requirements, standard power transfer hinges are ideal for most commercial and residential applications. They offer a good balance of functionality and cost-effectiveness.

Heavy-Duty Power Transfer Hinges

Heavy-duty power transfer hinges are suitable for doors that are subject to heavy use and need to support more complex electronic systems. These hinges are built to withstand rigorous use and provide a reliable power transfer solution for demanding environments.

Fire-Rated Power Transfer Hinges

Fire-rated power transfer hinges are specifically designed for doors that must comply with fire safety regulations while still needing to transfer power. These hinges provide the necessary fire resistance while ensuring that electronic devices remain operational during an emergency.

Concealed Hinges

Concealed power transfer hinges are designed for applications where the hinge must not be visible. These are commonly used in high-end residential and commercial projects where aesthetics are a primary concern.

Continuous Hinges

Continuous power transfer hinges run the entire length of the door and frame, providing superior support and durability. They are ideal for heavy or high-traffic doors and offer enhanced security and power transfer capabilities.

Installation and Maintenance

Installing power transfer hinges correctly is crucial for ensuring both the functionality and longevity of your door's electronic components. Following a precise installation process helps maintain the integrity of the hinge and the wiring it protects. Below is the installation process for ELE/ELELR models of power transfer hinges:

1. Door Preparation:

· Drill a wire chase hole with a 3/8" drill bit at the point noted on the hinge template.

· Position the ELE/ELELR hinge as one of the center hinges on the door since the modified hinge does not meet the manufacturer's load-bearing specifications.

· Drill a starter hole of 3/4" diameter and 1-1/2" deep for positioning the hinge wire.

2. Frame Preparation:

· Mark and drill a hole to receive the wires from the ELE/ELELR hinge.

3. Mounting the Hinge:

· Secure the hinge to the door and frame using appropriate screws, ensuring it is aligned correctly.

· Be careful not to pinch wires when securing the hinge.

4. Connecting Wires:

· Feed the electrical wiring through the hinge and connect it to the power supply and door-mounted devices.

· Do not allow the hinge to dangle by the wire during installation.

5. Testing:

· Verify the door swings freely and the electronic components receive power and function as expected.

Note:

1. For fire-rated conditions, confirm the maximum starter hole diameter and depth with the appropriate testing agency.

2. Use steel-based hinges for interior use only. Use stainless steel or brass base hinges for exterior installations.

Power Transfer Hinges: Comparison with Other Hinges

Standard Hinges vs. Power Transfer Hinges

· Standard Hinges: Standard hinges are designed primarily to support the mechanical movement of doors. They are straightforward and effective for basic door functionality but do not offer additional features such as electrical integration. Their design often includes visible components, which may not align with the sleek, modern aesthetics required in contemporary architecture. These hinges are best suited for applications where door movement is the sole requirement, and there is no need for incorporating electronic systems.

· Power Transfer Hinges: In contrast, power transfer hinges provide a dual function: they support the mechanical movement of the door and offer a concealed pathway for electrical wiring. This allows for the seamless integration of electronic systems such as locks, alarms, and surveillance equipment, maintaining the door’s clean appearance. Power transfer hinges are ideal for modern applications that demand both functionality and aesthetics, accommodating the growing trend of technology-enhanced security measures in buildings.

Continuous Hinges vs. Power Transfer Hinges

· Continuous Hinges: Continuous hinges, also known as piano hinges, run the full length of the door and frame, distributing weight evenly and reducing wear. These hinges are highly durable and well-suited for high-traffic areas where doors are subject to heavy use. However, they do not typically include provisions for electrical wiring, limiting their use in applications where electronic integration is necessary.

· Power Transfer Hinges: Power transfer hinges offer similar durability and weight distribution benefits as continuous hinges but with the added advantage of electrical integration. They ensure a continuous power supply to door-mounted electronic devices while providing robust mechanical support. This makes them suitable for high-security and high-traffic areas where both mechanical performance and electronic functionality are crucial.

Electric Hinge Models vs. Power Transfer Hinges

· Electric Hinge Models: Electric hinge models are specifically designed to transfer power between the door and the frame. However, they often lack the mechanical robustness of traditional hinges and can require additional components for proper functionality. Installation can be more complex, and these hinges may not offer the same level of durability or aesthetic appeal as other types.

· Power Transfer Hinges: Power transfer hinges merge the benefits of robust mechanical support with efficient power transfer. They streamline the installation process by combining both mechanical and electrical functions into a single unit, reducing complexity and potential points of failure. Power transfer hinges are versatile and comprehensive, suitable for doors that need to support advanced electronic systems without compromising on structural integrity or visual appeal.

Maintenance Tips:

Maintaining power transfer hinges involves regular inspections to ensure:

· Wiring Integrity:  Check for any signs of wear or damage to the electrical wiring.

· Mechanical Wear: Ensure the hinge operates smoothly without excessive wear or looseness.

· Electrical Connections: Verify that all connections are secure and free from corrosion.

Regular maintenance ensures that power transfer hinges continue to operate effectively and that the electronic systems they support remain functional.

Choosing the Right Power Transfer Hinge:

When selecting a power transfer hinge, consider the following factors:

· Door Weight and Size: Ensure the hinge can support the weight and size of the door.

· Electrical Requirements: Match the hinge’s capacity with the power needs of the door-mounted devices.

· Environmental Conditions: Choose hinges that can withstand specific environmental conditions, such as humidity or temperature extremes.

· Compliance: Ensure the hinge meets any relevant safety or building code requirements.

· Aesthetic Considerations: Select hinges that match the design and aesthetic requirements of the building.

Budget Considerations:

While power transfer hinges can be more expensive than traditional hinges, their benefits in terms of security, functionality, and reduced maintenance often justify the investment. It's important to balance cost with the required features and specifications.

Expert Opinions

At Zhejiang Cross Hardware Hinge Expert, we pride ourselves on the quality and innovation of our products. Our CEO, emphasizes the critical role of power transfer hinges in modern building security and design:

 "Power transfer hinges are not just a product, but a solution that integrates seamlessly with modern security and access systems. They represent the pinnacle of our engineering capabilities and our commitment to providing reliable and aesthetically pleasing solutions for our clients."

Power transfer hinges are a critical component in the modern built environment, enabling the seamless integration of electronic systems in doors. Their benefits in terms of security, aesthetics, reliability, and versatility make them an essential choice for various applications, from commercial buildings to smart homes. As technology advances, power transfer hinges will continue to evolve, offering even more innovative solutions to meet the demands of future architectural projects.

By understanding the features, applications, and advancements in power transfer hinges, architects, builders, and facility managers can make informed decisions that enhance the functionality and security of their projects. At Zhejiang Cross Hardware Hinge Expert, we are committed to providing top-quality power transfer hinges that meet the highest standards of performance and durability. For more information on our range of power transfer hinges and how they can benefit your next project, please visit our website or contact our sales team. Experience the excellence of Zhejiang Cross Hardware Hinge Expert, where innovation meets reliability.
